API Basics and Structured Outputs

Learning Objectives:

• Understand the OpenAI API message format (system, user, assistant)

• Use OpenRouter for multi-model access

• Extract structured data with Pydantic schemas

• Preview evaluation with promptfoo

---

The OpenAI API: Foundation for Everything

Almost every LLM tool you’ll use—LangChain, Claude Code, Cursor, custom agents—builds on the same fundamental interface: the chat completions API. Understanding this interface explains how all these tools work.

The modern LLM stack: a model augmented with retrieval, tools, and memory. The API is the interface that connects all these components. Source: Anthropic - Building Effective Agents

Message Roles

The API uses a conversation format with three roles:

Role	Purpose	Example
system	Sets context and behavior	“You are a financial analyst…”
user	Human input	“Analyze AAPL earnings”
assistant	Model response	“Apple reported…”

messages = [
    {"role": "system", "content": "You are a helpful assistant. Keep responses concise."},
    {"role": "user", "content": "What is an LLM?"},
]

The system message is optional but powerful—it shapes how the model interprets all subsequent messages.

Basic API Call

Full code: 02_openai_hello on GitHub

from openai import OpenAI

client = OpenAI(api_key="your-key-here")

response = client.chat.completions.create(
    model="gpt-4o-mini",
    messages=[
        {"role": "system", "content": "You are a helpful assistant."},
        {"role": "user", "content": "What is an LLM? Explain in 2-3 sentences."},
    ],
)

# Extract the response text
print(response.choices[0].message.content)

# Check token usage (important for cost management)
print(f"Total tokens: {response.usage.total_tokens}")

Understanding Tokens

LLMs process text as tokens—roughly 4 characters or 0.75 words each. You pay per token, so understanding tokenization matters:

Text	Approximate Tokens
“Hello”	1 token
“quantitative finance”	~3 tokens
A typical earnings headline	~20-30 tokens
A full 10-K filing section	~5,000-10,000 tokens

Cost awareness: GPT-4o-mini costs ~\(0.15 per million input tokens and ~\)0.60 per million output tokens. Processing 10,000 headlines costs roughly $0.03-0.10 depending on response length.

---

OpenRouter: Multi-Model Access

OpenRouter provides a unified API to access models from OpenAI, Anthropic, Google, Meta, and others. This is valuable for:

• Cost optimization (route to cheaper models when appropriate)

• Model comparison (test the same prompt across providers)

• Fallback handling (switch providers if one is down)

The modern GenAI stack has many layers and providers. OpenRouter sits at the API layer, providing a single interface to models from OpenAI, Anthropic, Google, Meta, and more.

Setup

Full code: 03_openrouter_hello on GitHub

from openai import OpenAI

# Same OpenAI client, different base URL
client = OpenAI(
    base_url="https://openrouter.ai/api/v1",
    api_key="your-openrouter-key",
)

# Access any model through OpenRouter
response = client.chat.completions.create(
    model="openai/gpt-4o-mini",  # Note the provider prefix
    messages=[
        {"role": "user", "content": "Hello from OpenRouter!"},
    ],
)

Models to Know

Model	OpenRouter ID	Cost (per 1M tokens)	Notes
GPT-4o-mini	openai/gpt-4o-mini	\(0.15 / \)0.60	Fast, cost-effective
GPT-4o	openai/gpt-4o	\(2.50 / \)10.00	Full capability
Claude 3.5 Sonnet	anthropic/claude-3.5-sonnet	\(3.00 / \)15.00	Strong reasoning
Gemini 2.0 Flash	google/gemini-2.0-flash-exp:free	Free	Testing only
Llama 3.1 8B	meta-llama/llama-3.1-8b-instruct	\(0.02 / \)0.05	Open source, cheap

Tip: Start with GPT-4o-mini for development. Use more expensive models only when you’ve validated the approach works.

---

Structured Outputs: Type-Safe Data Extraction

Raw text responses are hard to parse reliably. Structured outputs solve this by forcing the model to return valid JSON matching a schema.

Structured outputs enable reliable data flow between LLM calls and downstream systems. When the model returns consistent JSON, you can build robust pipelines. Source: Anthropic - Building Effective Agents

Why Structured Outputs?

Without structured outputs:

User: Classify this headline: "Apple beats earnings"
Model: "This is good news for Apple as they exceeded analyst expectations."

How do you extract “good news” from that? Regex? String matching? Both are fragile.

With structured outputs:

{
  "sentiment": "positive",
  "confidence": 0.92,
  "reasoning": "Beating earnings expectations is typically positive"
}

Now you have reliable data you can immediately use in a trading system.

Pydantic Schema Definition

Full code: 05_structured_outputs on GitHub

Pydantic provides type-safe schema definitions that validate responses:

from pydantic import BaseModel, Field
from typing import Literal

class SentimentAnalysis(BaseModel):
    """Structured sentiment analysis for a financial headline."""

    headline: str = Field(description="The original headline")
    sentiment: Literal["positive", "negative", "neutral"] = Field(
        description="Overall sentiment classification"
    )
    confidence: float = Field(
        description="Confidence score from 0.0 to 1.0",
        ge=0.0, le=1.0
    )
    key_entities: list[str] = Field(
        description="Company tickers or entities mentioned"
    )
    reasoning: str = Field(
        description="Brief explanation of the classification"
    )

Using the Schema with OpenAI

from openai import OpenAI
from pydantic import BaseModel, Field
from typing import Literal

client = OpenAI()

class SentimentAnalysis(BaseModel):
    sentiment: Literal["positive", "negative", "neutral"]
    confidence: float = Field(ge=0.0, le=1.0)
    reasoning: str

def classify_headline(headline: str) -> SentimentAnalysis:
    response = client.chat.completions.create(
        model="gpt-4o-mini",
        messages=[
            {
                "role": "system",
                "content": "Classify financial news headlines. Return structured JSON.",
            },
            {"role": "user", "content": headline},
        ],
        response_format={
            "type": "json_schema",
            "json_schema": {
                "name": "SentimentAnalysis",
                "strict": True,
                "schema": SentimentAnalysis.model_json_schema(),
            },
        },
    )

    # Parse and validate the response
    return SentimentAnalysis.model_validate_json(
        response.choices[0].message.content
    )

# Use it
result = classify_headline("Apple Reports Record Q4 Earnings")
print(f"Sentiment: {result.sentiment} (confidence: {result.confidence:.0%})")
print(f"Reasoning: {result.reasoning}")

The strict: True Requirement

OpenAI’s strict mode guarantees the response matches your schema exactly. Without it, the model might:

• Add extra fields

• Use wrong types

• Skip required fields

With strict: True, you get guaranteed schema compliance.

---

Building the Lopez-Lira & Tang Classifier

Let’s build the complete sentiment classification pipeline from Lopez-Lira & Tang (2023):

Full code: 11_lopez_lira on GitHub

from openai import OpenAI
from pydantic import BaseModel, Field
from typing import Literal
import csv

class LopezLiraSentiment(BaseModel):
    """Replicating Lopez-Lira & Tang (2023) sentiment classification."""

    classification: Literal["good news", "bad news", "uncertain"] = Field(
        description="Classify as 'good news', 'bad news', or 'uncertain'"
    )
    confidence: float = Field(
        description="Confidence in classification from 0.0 to 1.0",
        ge=0.0, le=1.0
    )

def classify_headlines(headlines: list[str], model: str = "gpt-4o-mini"):
    """Classify a batch of headlines following Lopez-Lira & Tang methodology."""

    client = OpenAI()
    results = []

    for headline in headlines:
        response = client.chat.completions.create(
            model=model,
            messages=[
                {
                    "role": "system",
                    "content": (
                        "You are a financial expert. For each headline, determine "
                        "whether it represents 'good news', 'bad news', or 'uncertain' "
                        "for the mentioned company's stock price. Consider market "
                        "expectations and typical investor reactions."
                    ),
                },
                {"role": "user", "content": f"Headline: {headline}"},
            ],
            response_format={
                "type": "json_schema",
                "json_schema": {
                    "name": "LopezLiraSentiment",
                    "strict": True,
                    "schema": LopezLiraSentiment.model_json_schema(),
                },
            },
        )

        result = LopezLiraSentiment.model_validate_json(
            response.choices[0].message.content
        )
        results.append({"headline": headline, **result.model_dump()})

    return results

# Example usage
headlines = [
    "Apple Reports Record Q4 Earnings, Beats Analyst Expectations",
    "Fed Signals More Rate Hikes Ahead, Markets Tumble",
    "Tesla Stock Plunges After Disappointing Delivery Numbers",
]

results = classify_headlines(headlines)
for r in results:
    print(f"{r['classification']:12} (conf: {r['confidence']:.0%}) | {r['headline'][:50]}")

---

Preview: Evaluation with promptfoo

How do you know your classifier is working? You need systematic evaluation.

promptfoo is an open-source tool for testing LLM outputs. We’ll cover it in depth later, but here’s the core idea:

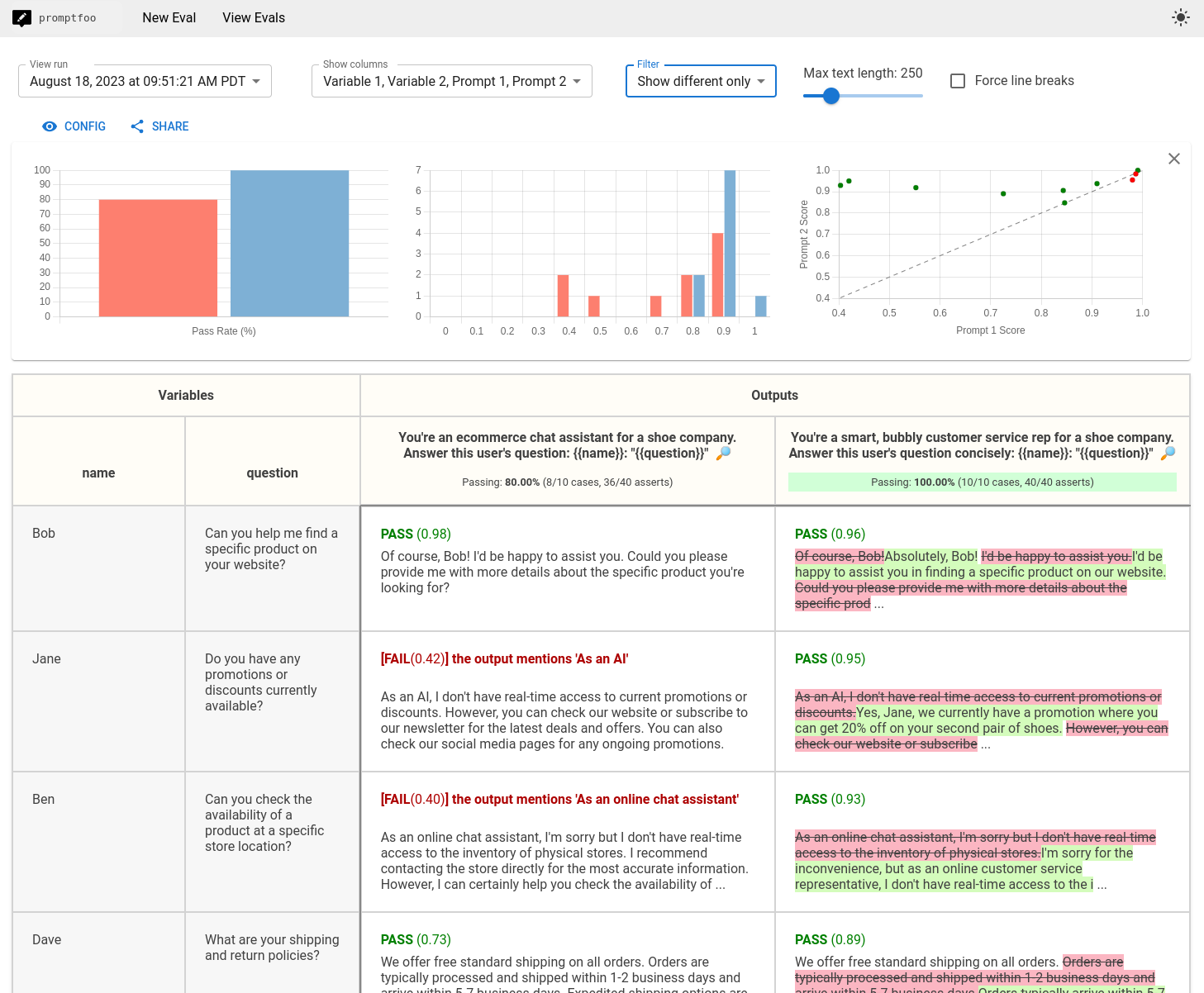

Promptfoo’s web UI shows side-by-side prompt evaluation across multiple models. At a glance, you can see which prompts pass or fail across GPT-4, Claude, and other models. Source: Promptfoo GitHub

# promptfoo.yaml
prompts:
  - "Classify this headline: {{headline}}"

providers:
  - openai:gpt-4o-mini
  - openai:gpt-4o

tests:
  - vars:
      headline: "Apple beats earnings expectations"
    assert:
      - type: contains
        value: "good news"

  - vars:
      headline: "Company announces massive layoffs"
    assert:
      - type: contains
        value: "bad news"

Run promptfoo eval and you get a comparison table showing how each model performs on each test case.

The Measurement Mindset

Before we dive into agents and RAG, establish this principle: every change should be measured.

• Changed the system prompt? Measure accuracy.

• Tried a different model? Measure cost and quality.

• Added few-shot examples? Measure improvement.

This is what separates principled development from trial-and-error.

---

Hands-On Exercises

Exercise 1: Basic API Call

Run the hello.py example and verify your API key works:

cd ai_inclass_examples/basic_llm_api/02_openai_hello
python hello.py

Exercise 2: Model Comparison

Modify the script to use OpenRouter and compare GPT-4o-mini vs Llama 3.1 8B on the same prompt. Note differences in response quality and cost.

Exercise 3: Build a Schema

Design a Pydantic schema for extracting financial metrics from earnings headlines. Include fields for:

• Ticker symbol

• Metric mentioned (revenue, earnings, guidance, etc.)

• Whether it beat/missed/met expectations

• Magnitude (if mentioned)

Exercise 4: Batch Classification

Use the Lopez-Lira & Tang classifier to process the sample headlines in data/sample_headlines.csv. Calculate the distribution of positive/negative/neutral classifications.

---

Key Takeaways

1. The message format is universal. System/user/assistant roles appear everywhere—understanding them unlocks all LLM tooling.

2. OpenRouter provides flexibility. Use it to access multiple providers through one API.

3. Structured outputs eliminate parsing. Pydantic schemas guarantee you get usable data.

4. Measure everything. The promptfoo preview establishes the evaluation mindset we’ll use throughout the course.

---

Next Steps

Now that you can call LLM APIs and extract structured data, let’s set up the AI development tools you’ll use daily. Continue to AI Copilots Introduction.
